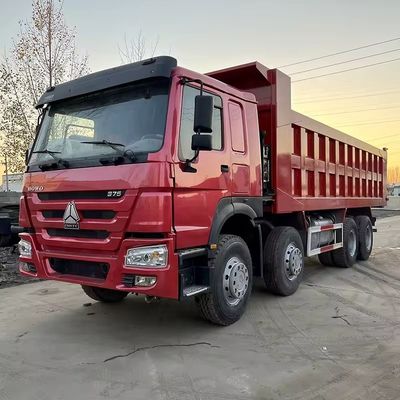

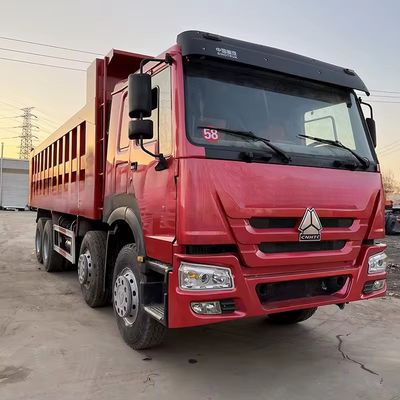

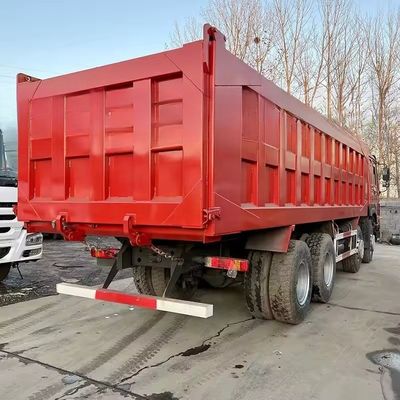

Automatic 8x4 371hp Sinotruk Howo Mine Sand Dump Tipper Truck 40 Ton 60 Ton In Africa

Automatic 8x4 371hp Sinotruk Howo Mine Sand Dump Tipper Truck 40 Ton 60 Ton In Africa

Brand Name:	SINOTRUK
MOQ:	1 Unit
Price:	$25,410.00/sets 1-13 sets
Payment Terms:	T/T
Supply Ability:	300unit/ Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CCC

Condition:

Used

Steering:

Left

Horsepower:

351 - 450hp

Emission Standard:

Euro 2

Segement:

Heavy Truck

Market Segement:

Mining Transportation

Engine Brand:

SINOTRUK

Fuel Type:

Diesel

Engine Capacity:

> 8L

Cylinders:

Gear Box Brand:

SINOTRUCK

Transmission Type:

Manual

Forward Shift Number:

Reverse Shift Number:

Maximum Torque(Nm):

500-1000Nm

Dimensions (L X W X H) (mm):

9245*2560*3450MM

Cargo Tank Dimension:

7300*2300*1500

Cargo Tank Length:

6.2-8m

Gross Vehicle Weight:

12500

Capacity (Load):

31 - 40T

Fuel Tank Capacity:

300-400L

Drive Wheel:

8X4

Passengers:

Driver's Seat:

Normal

Rear Camera:

None

Cruise Control:

None

ABS(Antilock Braking System):

None

ESC(Electronic Stability Control System):

None

Touch Screen:

None

Multimedia System:

None

Window:

Automatic

Air Conditioner:

Automatic

Tire Number:

After-sales Service Provided:

Video Technical Support, Overseas Call Centers, Field Installation, Commissioning And Training, Online Support, Free Spare Parts, Shop Warranty

Model:

ZZ331N3847B

Tire:

12.00R20/12.00R22.5

Engine:

WD615.47 (371HP)

Brand:

SINOTUK HOWO

Cab:

HW76

Wheel Base:

3800+1350+1350MM

Supply Ability:

300unit/ Day

Highlight:

40 Ton sinotruk howo 8x4 tipper truck

8x4 371hp sinotruk tipper truck

60 ton howo 8x4 dump truck

Product Description

Automatic 40 ton 60 ton 8x4 371hp Sinotruk howo mine sand dump tipper truck in Africa

Model		ZZ3257N3647B

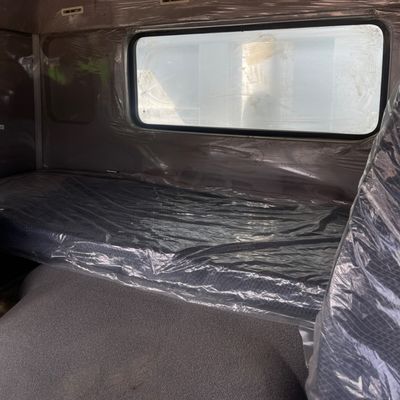

Cabin		HW76, with two seats and one bed, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber + air roof spoiler
Engine	Model	WD615.47
	Horse Power (Hp/rpm)	371/2200
	Max.Toruqe(Nm/rpm)	1820/1100-1500
	Displacement (L)	9.726
	Type	DIESEL, EURO II emission, 6-cylinder in-line with water cooling, turbo-charging and intercooling, 4-stroke common rail electronic controlled diesel engine
Clutch		Φ430 Diaphragm spring clutch, hydraulic operating with air assistance
Transmission		HW19712, 12 speeds forward and 2 speeds reverse.
Front Axle		HF9, Steering with double T-cross section beam, Rated loading capacity: 9,000kgs.
Driving Axle		HC16, Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles(Ratio: 4.42, 4.8)

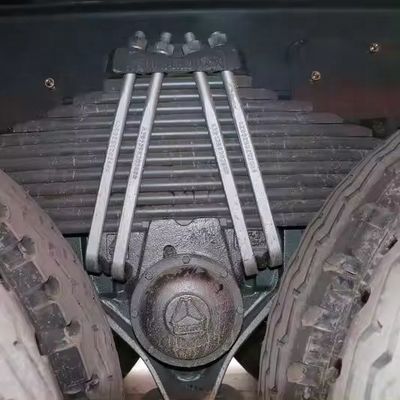

Suspension		Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer

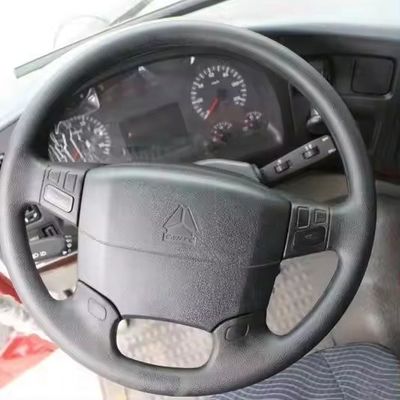

Steering System		ZF power steering, model ZF8118, hydraulic steering with power assistance
Brake System		Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake
Electrics		Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah
Tire		12.00R20
Fuel Tank(Gas Tank) Capacity (L)		400L Diesel Tank
Dead Weight (kg)		12530
Gross Vehicle Weight (kg)		33000
Gross Combination Weight (kg)		80000
Overall Dimension(LWH)(mm)		8145×2560×3450
Wheelbase(mm)		3625+1350
Front/Rear Overhang( mm)		1500/725
Wheel Track(Front/Rear)(mm)		2022/1850
Min. Ground Clearance(mm)		314
Approach/Departure Angle( °)		16/70
Max. Speed (km/h)		92
Max. Gradebility (%)		≥40
The Fifth Wheel		2”(50#) Option: 3.5”(90#) “
