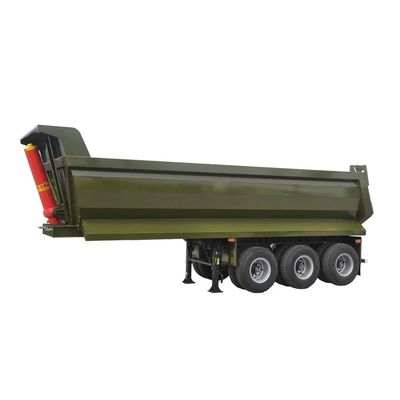

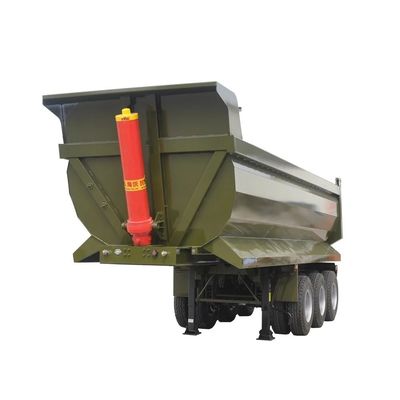

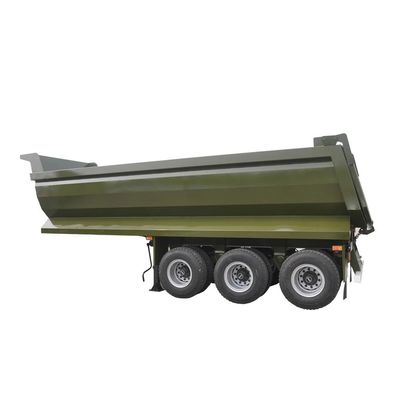

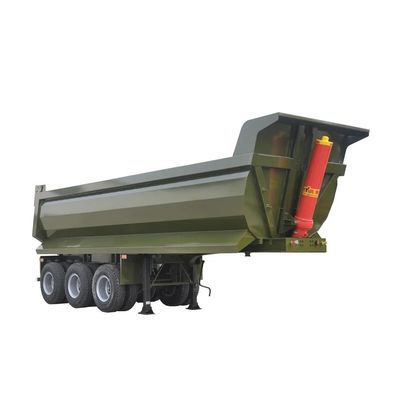

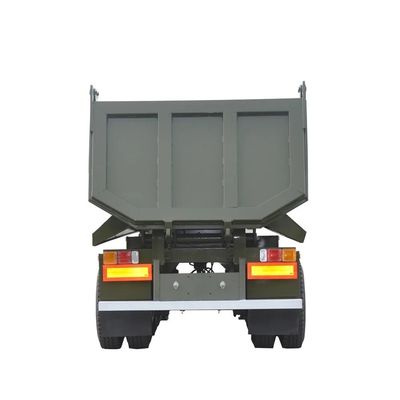

3 Axle 40 Tons Hardox Grain Camions Rear Dump Trailer Customized with BPW/ FUWA/ LUCKIN Axle

Brand Name:	XIANMANG
Price:	CN¥61,594.40/units 1-4 units

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Use:

Truck Trailer

Type:

Semi-Trailer

Material:

Steel

Size:

9000*2550*3800mm

Max Payload:

80T

Dimension:

OEM

Total Volume ( M3 ):

20-50 M3

Lifting System:

Full Set Of HYVA Hydraulic Lifting Cylinde

AXle No.:

2/3/4/5/6 Axles Optional

Axle Brand:

BPW/ FUWA/ LUCKIN

Landing Gear:

JOST Brand

King Pin:

JOST 2.0/3.5 Inches King Pin

Suspension:

Heavy Duty Mechanical Suspensions

Function:

Coal/Mine/Stand/Stone Loading

Tire:

11.00r20 12r22.5 315 385

Highlight:

3 Axle Rear Dump Trailer

Grain Camions Rear Dump Trailer

40 Tons Rear Dump Trailer

Product Description

Product Parameters

XIANMANG Rear Dump Tipper Semi Trailer
Application	Transport all kinds of Mineral/Coal/Stone/Sand/Cargo Loading
Model	2 axles tipper trailer	3 axles tipper trailer	4 axles tipper trailer	5 - 6 axles tipper trailer
Bucket capacity	25 cubic meters	30/35/40 cubic meters	40 cubic meters	45 cubic meters
Dimension (mm)	850025003500	10000x2500x3800	1050025003900	1150025003950
Rim and tires	12.00R22.5 tires 9.0-22.5 rims	12.00R22.5 tires 9.0-22.5 rims	315/80R22.5 tires 9.0-22.5 rims	12.00R20 tires 9.0-20
Lifting system	HYVA brand FE/FC type cylinders Diameter=191 mm	HYVA brand FE/FC type cylinders Diameter=191 mm	HYVA brand FE/FC type cylinders Diameter=202 mm	HYVA brand FE/FC type cylinders Diameter=214 mm
Tipping box	T700 / Hardox
Main Beams	T700 / Q345B double plate
	Height:500mm
	Upper Plate: 14mm
	Middle Plate: 8mm
	Lower Plate: 16mm
Axle	13T/16T FUWA / BPW / Own Brand
King Pin	JOST brand 2.0'' / 3.5'' bolt type king pin
Landing Gear	JOST 28T double speed JOST / TAIHUA brand
Suspension	Heavy duty mechanical suspension / Air bag / Bogies
Pneumatic Braking System	WABCO RE 6 relay valve T30/30 air brake chamber
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 (special for export market )
Light	LED light,24V,7ways(7 wire harness)
Tool Box	steel/aluminum One piece,1m0.5m0.5m(Size can be choose freely)
Painting	1 coat of anticorrosive prime, 2coats of final paint
Any parts fitted could according to clients request, contact us to get more
