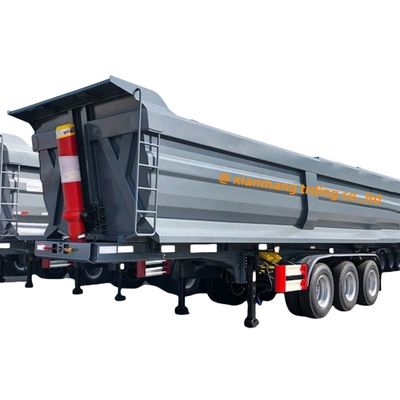

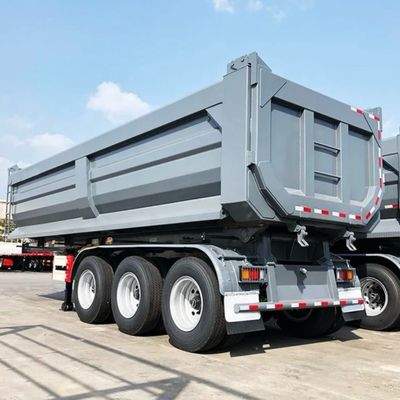

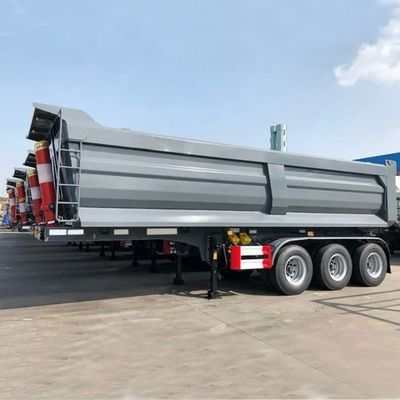

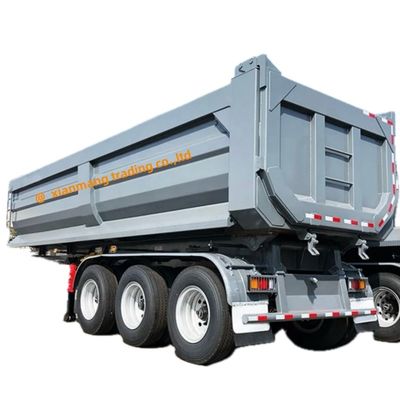

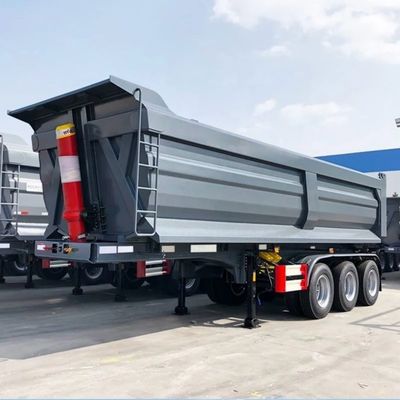

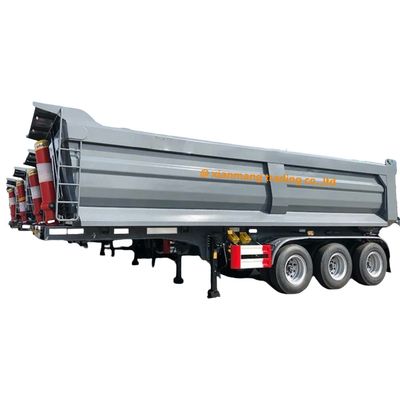

3-6 Axles Rear Dump Semi Trailer Heavy Duty Hydraulic Dump Trailer For Sale In Tanzania

Brand Name:	SINOTRUCK
Price:	CN¥158,696.16/units 1-4 units

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Condition:

New And Used

Steering:

Left

Horsepower:

351 - 450hp

Emission Standard:

Euro 2

Segement:

Heavy Truck

Market Segement:

Engineering Transportation

Fuel Type:

Diesel

Engine Capacity:

> 8L

Cylinders:

Gear Box Brand:

SINOTRUCK

Transmission Type:

Manual

Forward Shift Number:

Reverse Shift Number:

Maximum Torque(Nm):

1500-2000Nm

Dimensions (L X W X H) (mm):

8600x2550x3500

Cargo Tank Dimension:

5600x2300x1500mm

Cargo Tank Length:

5.3-6.2M

Gross Vehicle Weight:

10-15T

Capacity (Load):

31 - 40T

Fuel Tank Capacity:

300-400L

Drive Wheel:

6x4

Passengers:

Driver's Seat:

Normal

Rear Camera:

None

Cruise Control:

None

ABS(Antilock Braking System):

Yes

ESC(Electronic Stability Control System):

None

Touch Screen:

None

Multimedia System:

Yes

Window:

Automatic

Air Conditioner:

Manual

Tire Number:

10 Or 12

After-sales Service Provided:

Video Technical Support, Field Installation, Commissioning And Training, Online Support, Free Spare Parts, Field Maintenance And Repair Service

Axle:

13/16 Ton Fuwa/BPW/BERKLEY

Function:

Transport Sand

Suspension:

Mechanical Suspension Air Suspension

Tire:

11.00r20 12r22.5 315 385

Rim:

9.00*22.5/6.5-20 (12/16 Pieces) Steel/Aluminum

Color:

Custom's Requirement

Landing Gear:

JOST/FUWA/Yahua Brand 28T

King Pin:

2"(50mm)or3.5"(90mm) JOST

Brake System:

WABCO Valve

Capacity:

50T-80T

Highlight:

Heavy Duty Hydraulic Dump Trailer

3-6 Axles Rear Tipping Trailer

Hydraulic Semi Truck Dump Trailer

Product Description

Product Parameters

XIANMANG Rear Dump Tipper Semi Trailer
Application	Transport all kinds of Mineral/Coal/Stone/Sand/Cargo Loading
Model	2 axles tipper trailer	3 axles tipper trailer	4 axles tipper trailer	5 - 6 axles tipper trailer
Bucket capacity	25 cubic meters	30/35/40 cubic meters	40 cubic meters	45 cubic meters
Dimension (mm)	850025003500	10000x2500x3800	1050025003900	1150025003950
Rim and tires	12.00R22.5 tires 9.0-22.5 rims	12.00R22.5 tires 9.0-22.5 rims	315/80R22.5 tires 9.0-22.5 rims	12.00R20 tires 9.0-20
Lifting system	HYVA brand FE/FC type cylinders Diameter=191 mm	HYVA brand FE/FC type cylinders Diameter=191 mm	HYVA brand FE/FC type cylinders Diameter=202 mm	HYVA brand FE/FC type cylinders Diameter=214 mm
Tipping box	T700 / Hardox
Main Beams	T700 / Q345B double plate
	Height:500mm
	Upper Plate: 14mm
	Middle Plate: 8mm
	Lower Plate: 16mm
Axle	13T/16T FUWA / BPW / Own Brand
King Pin	JOST brand 2.0'' / 3.5'' bolt type king pin
Landing Gear	JOST 28T double speed JOST / TAIHUA brand
Suspension	Heavy duty mechanical suspension / Air bag / Bogies
Pneumatic Braking System	WABCO RE 6 relay valve T30/30 air brake chamber
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 (special for export market )
Light	LED light,24V,7ways(7 wire harness)
Tool Box	steel/aluminum One piece,1m0.5m0.5m(Size can be choose freely)
Painting	1 coat of anticorrosive prime, 2coats of final paint
Any parts fitted could according to clients request, contact us to get more
