3 Axles 40t Tipper Semi Trailer , 60 Ton 40-60t Heavy Duty Dump Trucks For Sale

Brand Name:	XIANMANG
Price:	CN¥158,696.16/units 1-4 units

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Use:

Truck Trailer

Type:

Semi-Trailer

Material:

Steel

Size:

13750*2550*3850mm

Max Payload:

>30000 Kg

Axle:

13/16 Ton Fuwa/BPW/BERKLEY

Function:

Transport Sand

Suspension:

Mechanical Suspension Air Suspension

Tire:

11.00r20 12r22.5 315 385

Rim:

9.00*22.5/6.5-20 (12/16 Pieces) Steel/Aluminum

Color:

Custom's Requirement

Landing Gear:

JOST/FUWA/Yahua Brand 28T

King Pin:

2"(50mm)or3.5"(90mm) JOST

Brake System:

WABCO Valve

Capacity:

50T-80T

Highlight:

heavy duty dump trucks for sale

40t Tipper Semi Trailer

60 Ton Tipper Semi Trailer

Product Description

Product Parameters

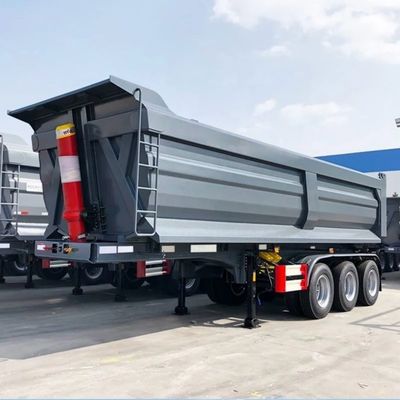

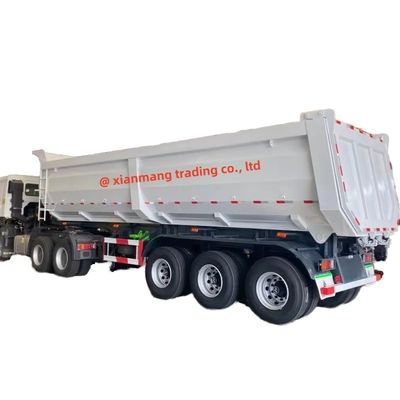

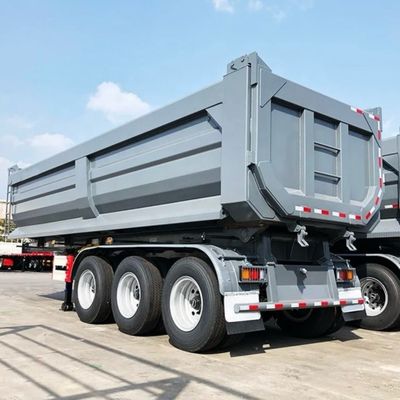

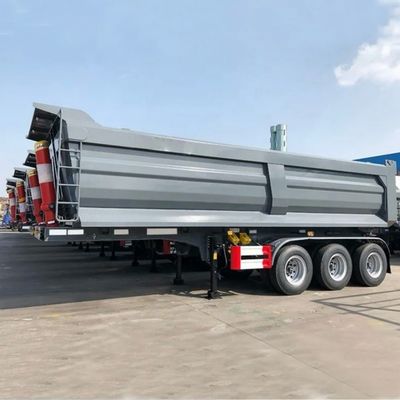

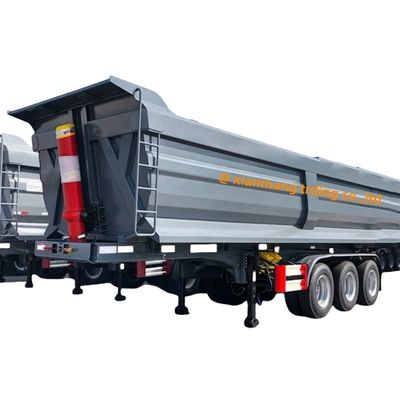

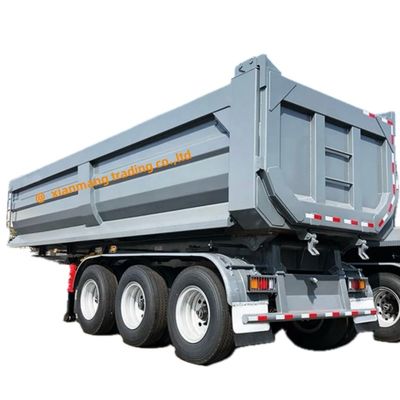

XIANMANG Rear Dump Tipper Semi Trailer
Application	Transport all kinds of Mineral/Coal/Stone/Sand/Cargo Loading
Model	2 axles tipper trailer	3 axles tipper trailer	4 axles tipper trailer	5 - 6 axles tipper trailer
Bucket capacity	25 cubic meters	30/35/40 cubic meters	40 cubic meters	45 cubic meters
Dimension (mm)	850025003500	10000x2500x3800	1050025003900	1150025003950
Rim and tires	12.00R22.5 tires 9.0-22.5 rims	12.00R22.5 tires 9.0-22.5 rims	315/80R22.5 tires 9.0-22.5 rims	12.00R20 tires 9.0-20
Lifting system	HYVA brand FE/FC type cylinders Diameter=191 mm	HYVA brand FE/FC type cylinders Diameter=191 mm	HYVA brand FE/FC type cylinders Diameter=202 mm	HYVA brand FE/FC type cylinders Diameter=214 mm
Tipping box	T700 / Hardox
Main Beams	T700 / Q345B double plate
	Height:500mm
	Upper Plate: 14mm
	Middle Plate: 8mm
	Lower Plate: 16mm
Axle	13T/16T FUWA / BPW / Own Brand
King Pin	JOST brand 2.0'' / 3.5'' bolt type king pin
Landing Gear	JOST 28T double speed JOST / TAIHUA brand
Suspension	Heavy duty mechanical suspension / Air bag / Bogies
Pneumatic Braking System	WABCO RE 6 relay valve T30/30 air brake chamber
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 (special for export market )
Light	LED light,24V,7ways(7 wire harness)
Tool Box	steel/aluminum One piece,1m0.5m0.5m(Size can be choose freely)
Painting	1 coat of anticorrosive prime, 2coats of final paint
Any parts fitted could according to clients request, contact us to get more
