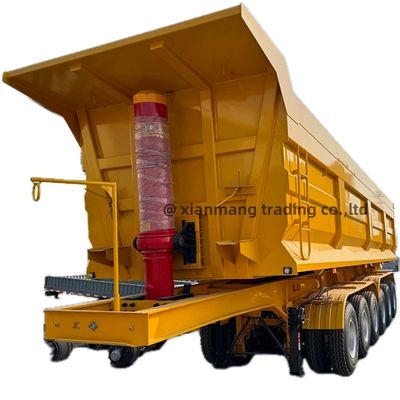

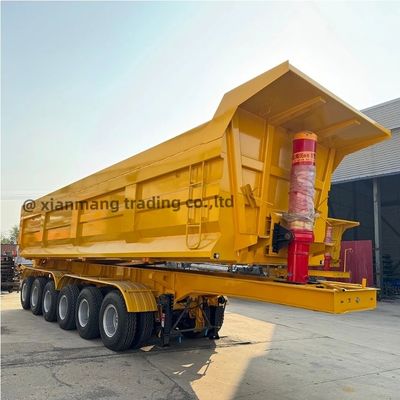

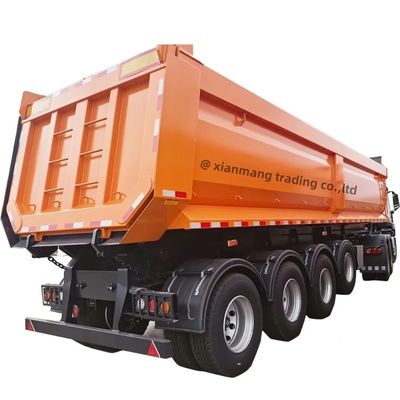

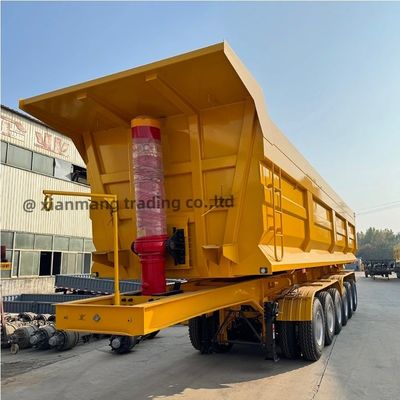

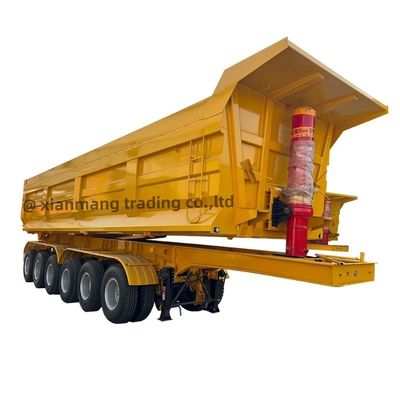

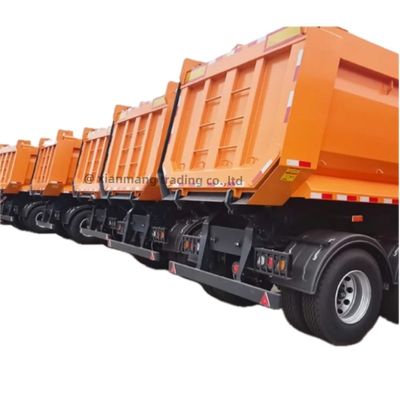

3/4 Axle Rear Dump Semi Trailer , Hydraulic Cylinder U Type 20 Tons 50 Tons Tipper Dump Truck For Sale

Brand Name:	xianmang
Price:	CN¥50,724.80/units 1-4 units

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Use:

Truck Trailer

Material:

Steel

Size:

9300mm*2400mm*1800mm

Max Payload:

100T

Cylinder:

Hyva FC/Ez Brand

Load Capacity:

60-100ton

Tread:

1820-2240

Suspension System:

Spring/Air Suspension/Bogie

Brake System:

Dual Line Braking System /ABS

Tire Specification:

12.00r20 /315/80r22.5 Or Customized

Bucket:

35cbm, 40cbm, 45cbm

Tilt Angle:

45 Degrees

Box:

U Type Hardox Or Equal Steel

Production Capacity:

500 Pieces Per Month

Highlight:

50 tons Tipper Dump Truck

Hydraulic Cylinder Rear Dump Semi Trailer

20 tons Tipper Dump Truck

Product Description

Product Overview

Hydraulic cylinder 4 Axles U type 20 tons 50 tons End Dump Trailer Tipper Semi Truck Trailer for sale

1. High load capacity: The 4 axles dump semi trailer has a high load capacity, allowing it to transport large quantities of materials or goods efficiently and effectively.

2. Enhanced stability: With four axles, this semi trailer offers enhanced stability during transportation, reducing the risk of accidents or damage to the cargo.

3. Versatile design: The 4 axles dump semi trailer is designed to be versatile, allowing it to be used for various purposes, such as transporting construction materials, agricultural products, or waste materials.

4. Easy unloading: The dump feature of this semi trailer allows for easy unloading of the cargo, making it a convenient choice for industries that require frequent loading and unloading operations.

FEATURES AT A GLANCE

PRODUCT SPECIFICATIONS

Box Body
Dimension	10000mm×2500mm×3800mm (The final size is according to the drawing)
Box size(Inner Size)	9000mm×2300mm×1600mm
Tare Weight	About 14000kg
Total Volume ( m3 )	0 m³
Side wall thickness	4 mm
Bottom plate thickness	6 mm
Lifting system	Full set of HYVA Hydraulic Lifting Cylinder
Chassis
Axle	3 axles, 13T
Landing Gear	JOST E100, double speed type;
King Pin	JOST 2.0/3.5 inches king pin
Suspension	Heavy Duty Mechanical Suspensions (American type);
Leaf Spring	90(W)mm×16(Thickness)mm×10 layers,6 sets
Pneumatic Braking System	WABCO RE 6 relays valve; 8 pcs Spring chamber; 2 pcs of 40L air tankers
Rim	9.0-22.5, 12 pcs rims;
Tire	12R22.5, 12 pcs tires;
Painting	Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
Accessories	One standard tool box, one spare tire carrier.

Package & Transport
