XM Group 4 Axle 50 60 Ton Gooseneck Lowbed Semi Trailer Lowboy Truck Trailer For Tanzania And Kenya

Brand Name:	XM
Price:	CN¥57,971.20/sets 1-9 sets

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong

Use:

Truck Trailer

Type:

Semi-Trailer

Material:

Steel

Size:

13000 X 3000 X 1650

Max Payload:

60T

Product Name:

Lowbed Semi Trailer

Axle Brand:

13 T/16T, FUWA /BPW Brand

Capacity:

50T

King Pin:

JOST Brand 2.0 Or 3.5inch Bolts Type Or Welding Type

Support Leg:

JOST Brand D200T Or China Brand 28Tons (Double Speed)

Tare Weight:

About 8.5-13T

Suspension:

Mechanical Suspension (Germany Type Or America Type)

Ladder:

Manual Or Hydraulic Type

Logo:

According To Your Request

Brake Chamber:

WABCO RE 6 Relay Valve

Highlight:

60 ton lowbed semi trailer

gooseneck lowbed semi trailer

4 Axle Lowboy Truck Trailer

Product Description

XM Group Lowbed semi-trailers are the workhorses of the transportation industry, hauling massive cargo that would otherwise be impossible to move. These versatile trailers can handle everything from construction equipment and machinery to wind turbine blades and oil rigs. If you need to transport something big, heavy, and out-of-the-ordinary, a lowbed semi-trailer is the solution.

Why choose XianMang Trading Co., Ltd for cooperation ?

The quality of most of XianMang semi trailer are the same as or better than CIMC and Titan For example, the quality of Flatbed semi trailer,Low bed Semi Trailer, Fuel tanker semi Trailer, Detachable Gooseneck Lowboy (Frond loading) Trailer, and Container

Side Loader far exceed the quality of CIMC. Secondly, XM Trailer is the manufacturer that exports the most semi-trailers in China, exporting more than 2,600 units every year. Choosing XM Group, we will help you resolve all from production, packing and shipping to after-sales services, with more favorable price.

There are many reasons why lowbed semi-trailers are the preferred choice for heavy-haul transportation.

* Capacity: Lowbed trailers can handle incredibly heavy loads, often exceeding 100 tons.

* Versatility: They can accommodate a wide variety of cargo shapes and sizes.

* Maneuverability: Despite their size, lowbed trailers are surprisingly maneuverable, thanks to their articulated design.

* Safety: Lowbed trailers are equipped with numerous safety features, such as ramps, chains, and tie-downs, to keep your cargo secure.

If you're in any of the following industries, you may need a lowbed semi-trailer:

* Construction: Hauling heavy equipment, machinery, and materials

* Manufacturing: Transporting large machinery and components

* Energy: Moving wind turbine blades, transformers, and other equipment

* Oil and gas: Hauling drilling rigs, pipes, and other equipment

* Shipping: Transporting oversized cargo to and from ports

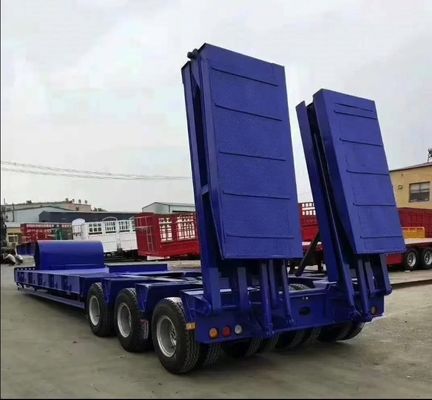

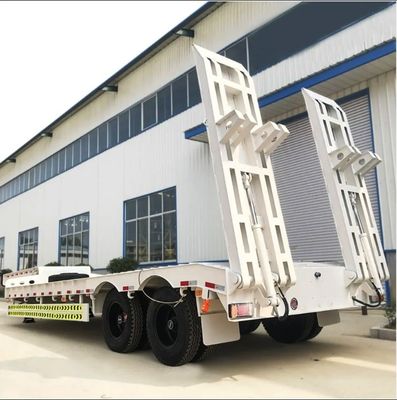

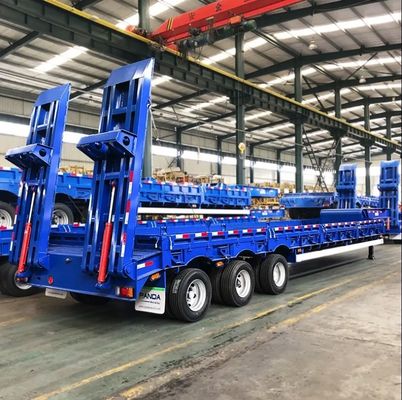

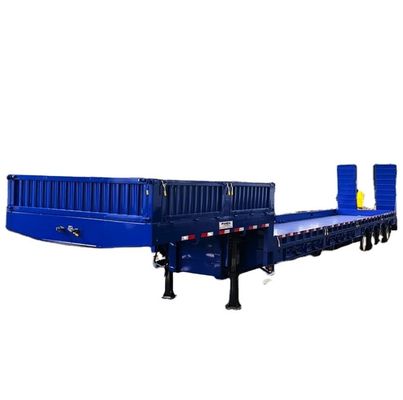

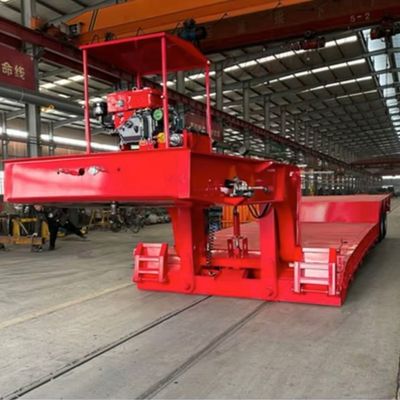

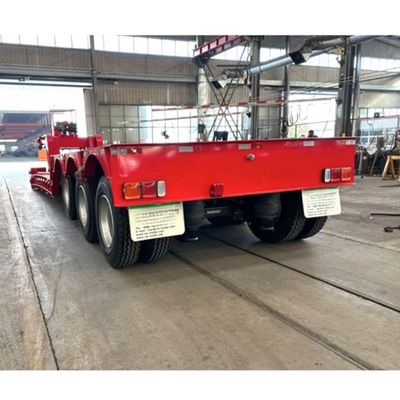

Details Images

Product Paramenters

Product Name	2 axles lowbed semi trailer	3 axles lowbed semi trailer	4 axles lowbed semi trailer
Size	1250030001100 (mm)	1300030001100 (mm)	1400030001100 (mm)
Payload	40000KG	60000KG	80000KG
Plate	4mm checked plate	4mm checked plate	5mm checked plate
Axles	2 * 13ton capacity (Brand optional)	3 * 13ton capacity (Brand optional)	4 * 13ton capacity (Brand optional)
Ladder	Mechanical spring ladder or hydraulic ladder
Main beam	Heavy duty I beam.
Side beam	250mm I beam
Suspension	Mechanical suspension (Air suspension optional)
Leaf spring	10pcs
Tire	12R22.5 / 11.00R20 8pcs (Other size optional)
Rim	9.00-22.5 / 11.00R20 8pcs (Other size optional)
Kin pin	2''/3.5'' bolt type
Landing gear	28 Ton two speed
Braking system	Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Sand blasting processing clean rust
	1 coat of anticorrosive primer
	2 coats of finish urethane paint
	Color as customer choice
Accessory	One tooling box with a set of standard trailer tool
Usage	Is applicable for the transportations of the mechanical equipment,
	large objects, highway construction equipment, large tanks,
	power plant equipment or machine, and all sorts of steel products.
Other Descriptions	The cargo platform is lower than others,
	is applicable for unsound road condition,
	ensuring the stablenessof the transportation.
Other Specifications	It's concave structured with tyre appeared style,
	the height of the cargo's carrying platform from ground is 900mm,
	(ladders belong to optional components), with the overall height of 1710 mm
Remark	We can design model according to client's requirement
