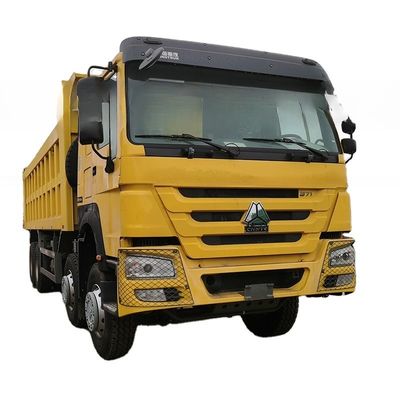

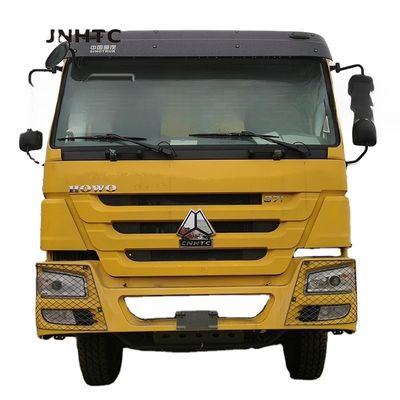

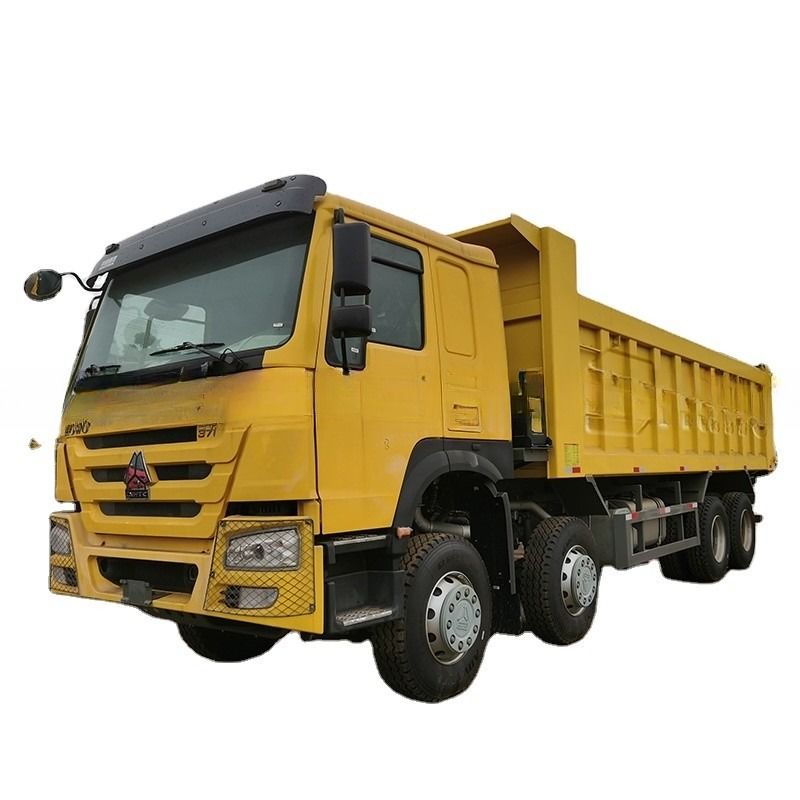

31tons 8X4 Sinotruk Dump Truck Howo 12 Wheeler Tipper Truck With High Capacity

Name: 31tons 8X4 Sinotruk Dump Truck Howo 12 Wheeler Tipper Truck With High Capacity
Brand: Dongguan Xianmang Electronic Trade Co., Ltd
Price: 5.00 USD
Availability: InStock

Brand Name:	HOWO
MOQ:	1 Unit
Price:	$25,410.00/units 1-9 units
Payment Terms:	T/T
Supply Ability:	300unit/ Day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Condition:

Used

Steering:

Left

Horsepower:

351 - 450hp

Emission Standard:

Euro 2

Make:

SINOTRUCK, SINOTRUCK

Segement:

Heavy Truck

Market Segement:

Mining Transportation

Engine Brand:

SINOTRUCK

Fuel Type:

Diesel

Engine Capacity:

> 8L

Cylinders:

Gear Box Brand:

SINOTRUCK

Transmission Type:

Manual

Forward Shift Number:

Reverse Shift Number:

Maximum Torque(Nm):

1500-2000Nm

Dimensions (L X W X H) (mm):

10745*2496*3190

Cargo Tank Dimension:

7800*2300*1500

Cargo Tank Length:

6.2-8m

Gross Vehicle Weight:

≥30T

Capacity (Load):

21 - 30T

Fuel Tank Capacity:

300-400L

Drive Wheel:

8X4

Passengers:

Driver's Seat:

Air Suspension

Rear Camera:

None

Cruise Control:

None

ABS(Antilock Braking System):

None

ESC(Electronic Stability Control System):

None

Touch Screen:

None

Multimedia System:

Yes

Window:

Automatic

Air Conditioner:

Manual

Tire Number:

After-sales Service Provided:

Video Technical Support, Online Support

Wheel Base (mm):

3800+1350(Option)

Engine Model:

WD615.47(Option)

Transmission:

HW19710

Front Axle:

HF9

Rear Axle:

HC16

Rims:

8.5-20

Types:

12.00R20(Option)

Cargo Body:

7800*2300*1500(Option)

Cab:

Double(Option)

Supply Ability:

300unit/ Day

Highlight:

howo 12 wheeler dump truck 31tons

31tons 8x4 sinotruk dump truck

sino howo dumper truck 12 wheeler

Product Description

*Howo 84 dump truck**

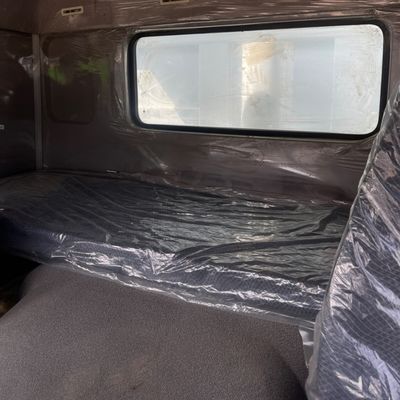

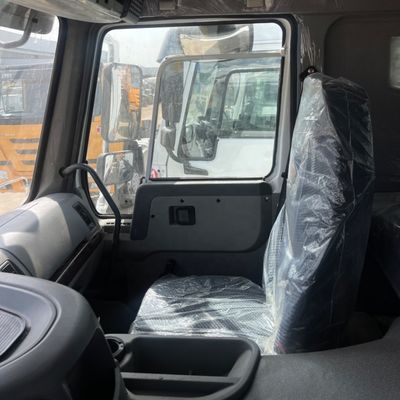

Cabin		HW70(NO BED);HW76(SINGLE BED;air -conditioning as standard

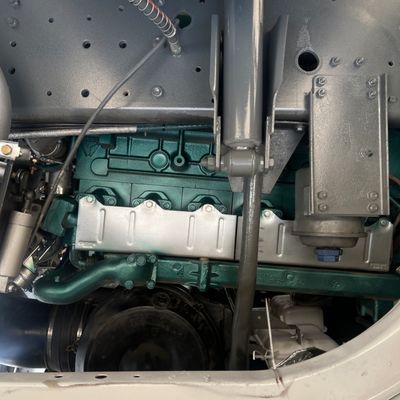

engine	Model	Wd615.69	Wd615.47
	Fuel	Diesel
	Displacement	9.726L
	Emission Standard	EURII
	Power	247(336)/2200	273(371)/2200
	torque	1350/1100-1600	1500/1100-1600
transmission	model	HW19710 10 forward and 2 reverse
	Control model	MT
Front axle		HF9 drum-type rated load of 9tons
Rear axle		HC16 16tons speed ratio:3.93 4.42 4.8 5.73
Clutch		Single-plate dry diaphragm spring clutch, diameter 430(B)mm, hydraulically operating with air assistance
steering		ZF8118 left
Suspension		Leaf spring suspension
Fuel tank		300L
tyres		12.00R20tube Option:11.00-20tube 12R22.5tubless 315/80R22.5tubless
Wheel base(MM)		1800+3800+1350
Box sizes		780023001500
Box thickness		Bottom 8mm and side 6mm
