2/3/4 Axle Fuel Tank Semi Trailer 4000/45000 Litres Fuel Tanker Truck Semi Trailer

Brand Name:	XianMang
Price:	CN¥152,174.40/units 1-4 units

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Use:

Truck Trailer

Type:

Semi-Trailer

Material:

Steel

Size:

12500mm*2490mm*1550mm

Max Payload:

30 Ton

Axle:

13/16 Ton Fuwa/BPW/BERKLEY

Suspension:

Mechanical Suspension Air Suspension

Function:

Transport Bitumen

Color:

Custom's Requirement

Tire:

12R22.5/315/80R22.8/11R22.5 Triangle

Landing Gear:

JOST/FUWA/Yahua Brand 28T

King Pin:

2"(50mm)or3.5"(90mm) JOST

Brake System:

WABCO Valve

Loading Capacity:

40-80T

Rim:

9.00*22.5/6.5-20 (12/16 Pieces) Steel/Aluminum

Highlight:

Fuel Tanker Truck Semi Trailer

4 Axle Fuel Tanker Semi Trailer

45000 Litres Fuel Tanker Semi Trailer

Product Description

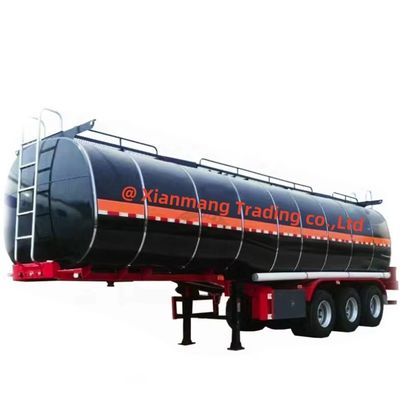

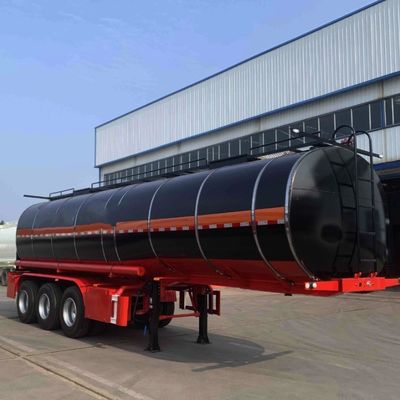

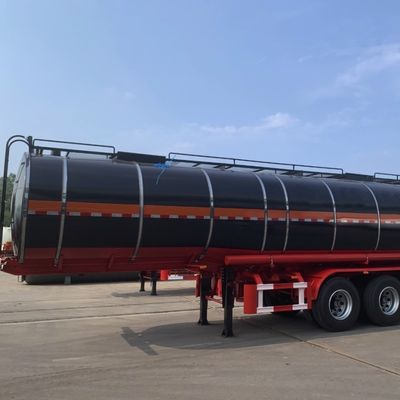

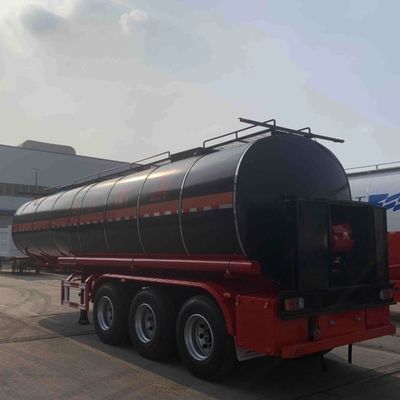

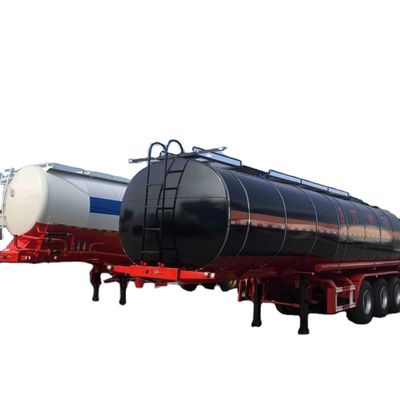

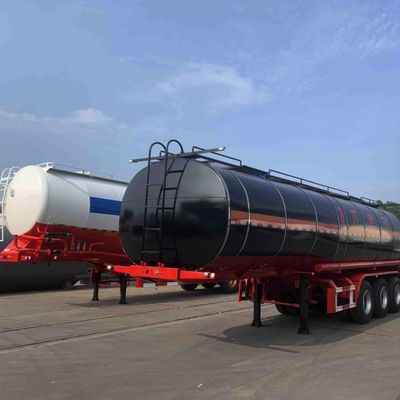

Product Display

1. General Info:
Capacity:	30,000 liters±3%~5%
Compartmentation:	Single compartment
Hauling product:	Bitumen with density 1.15
Overall dimension:	1050025003800 mm (Final dimension depends on the final design drawings)
2. Tank shell
Material	Carbon steel Q235B
Dished end	6mm thick steel Q235B. Al single heads dished and flanged.
Tank shell	5mm thick steel Q235B
Baffle & anti-wave plate	4 mm thick steel Q235B
Hydrostatic test	150Kpa Pressure Testing-hydrostatic 150kpa each compartment
Insulation & Cladding	Inflaming 80mm thick Rock wool around tanker shell. Tank body: Covered with stainless steel. Fastened by full circum clamp rings with rubber seal
Heating Mode	Burner heating(Riello brand)
Heating pipe line	4 set 50mm diameter heating pipe coils inside the tank body, connected to burner
Shell finish	Tank shell sandblasted to SA 2.5 and painted epoxy zinc phosphate primer(anti-corrosion), and then covered by insulation fastened by clapping Logo design as per client's requirement.
3. Components	,
Manhole cover	2 sets 500mm diameter quick-open type manhole cover
Breath valve	2 set breath valves
Discharge valve	2 sets 6” outlet at rear of tank
Thermometer	1 set measurement range 0°℃~300℃
Hose and hose carrier	1 nos (LHS) and 1 nos (RHS)hose carrier to fit 6” x 6 meter hose close type complete brackets to be installed at discharge side.
4. Running Part
King Pin	3.5 inches
Axle	3 axle, 13T
Tire	12R22.5, 12pcs+1pc spare tire
Rim	9.00-22.5, 13pcs
Suspension	American Type Mechanical Suspension
Leaf Spring	10 layers 90mm*13mm
Brake System	WABCO RE 6 relay-valve; T30/30+T30 air chamber, 40L air tanks
Electric System	One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable.
Accessories	• Spare wheel carrier for one spare wheels with lifting mechanism. • 2 pcs fire extinguishers, 8kg powder each, with relevant holder. • 2 pcs earth plate straps for loading-off electrostatic charges. • “Bitumen” painting on both sides of tanker . • 1 pc lockable toolbox, mounted sideways the chassis. • 2 pcs Rear reflecting panels. • Rear bumper with rear lights. • Front ladder for access to the manhole. Mudguards covering the rear wheels.
