Brand Name: | SITRAK |
Model Number: | C7H |
MOQ: | 1 unit |
Price: | Negotiation |
Payment Terms: | T/T |
Supply Ability: | 50 units per week |
Vehicle series |

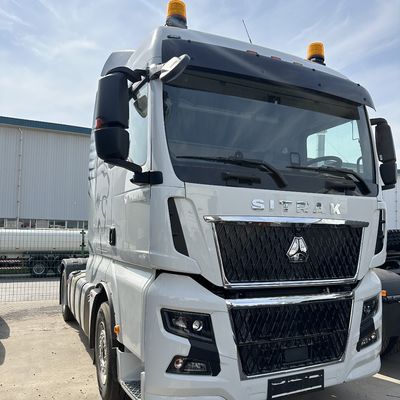

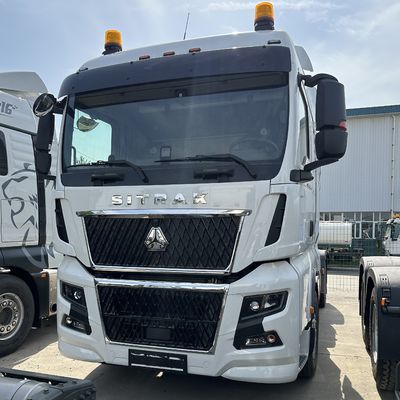

C7H 6x4 Tractor
|
|
Cab | C7H-G,C7H-P,C7H-U,C7H-F | |
Engine | Model | MC11 |
Power(Ps/rpm) | Euro 3:(350-430)/1900 Euro 4/5:(360-440)/1900 | |
Maximum torque(Nm/rpm) | Euro 3:(1750-2100)/(1000-1400) Euro 4/5:(1800-2100)/(1000-1400) | |
Displacement(L) | 10.518 | |
Transmission | ZF16S2230TO for 440/430PS 16 speed manual control aluminum synchronizer Gearbox. Ratios:1-13.80,2-11.54,3-9.49,4-7.93,5-6.53,6-5.46,7-4.57,8-3.82,9-3.02,10-2.53,11-2.08,12-1.74,13-1.43,14-1.20,15-1.00,16-0.84,R1-12.92,R2-10.80 |
|
ZF16S1850 for 360/350PS. Ratios:1-15.39,2-13.09,3-10.57,4-9.00,5-6.96,6-5.92,7-4.58,8-3.90,9-3.36,10-2.86,11-2.31,12-1.96,13-1.52,14-1.29,15-1.00,16-0.85,R1-12.44,R2-10.59 | ||
ZF16S1950 for 400/390PS 16 speed manual control synchronizer Gearbox.Ratios:1-11.64,2-9.70,3-8.00,4-6.67,5-5.73,6-4.77,7-4.07,8-3.40,9-2.86,10-2.38,11-1.96,12-1.64,13-1.41,14-1.17,15-1.00,16-0.83,R1-9.41,R2-7.84 |
||
Clutch | Φ430 diaphragm spring clutch,pull type,single plate | |
Front axle | HF7 Forging I-beam front axle,disk brake | |
Rear axle | MCY13Q central single reduction,drum brake i=4.11,optional i=3.08,3.36,3.70 | |
Steering gear | ZF hydraulically assisted | |
Suspension | Steer Axle | Parabolic springs with shock absorbers and stabilizer |
Drive Axle | Parabolic springs with shock absorbers and stabilizer/Air suspension,eight air bags for rear suspension | |
Braking system | Type | Anti-lock braking system(ABS) |
Service brake | Dual-circuit air brake | |
Parking Brake | Spring brakes on rear axles | |
Auxiliary brake | Exhaust valve braking(EVB) | |
Electric system | Type | SINOTRUK CAN bus+BCU+VCUcontrol system with VDO instrument |
Voltage | 24V | |
Batteries | 2 x 12V,165 Ah | |
Alternator Power | 28V/80A | |
Starter Power | 5.5 KW | |
Optiona | 180AH batteries | |
Wheels & Tyres | Tyres | 295/80R22.5 |
Wheels | 9.00x 22.5,steel | |
Optional | 315/80R22.5,Aluminum wheels | |
Fuel Tank | Capacity | 600 Liter |
Type | Rectangular aluminum | |
Optional | 600 Liter with double chamber | |
Frame | Material | High tensile steel |
Section | 270 x 85 x 8mm | |
Frame width | Front 942 mm / rear 762 mm | |
Weights (kg) | Curb weight | 8800 |
Gross Vehicle Weight | 33000 | |
Design loading capacity at fifth wheel | 24070 | |
Maximum traction weight | 60000 | |
Vehicle Dimensions (mm) | Overall length x Overall width x Overall height without deflector | 6895x2496x(3620/3410/3500/3210) |
Wheelbase | 3200 | |
Front overhang/Rear overhang | 1475/820 | |
Wheel track of front axle | 2022 | |
Wheel track of rear axle | 1830 | |
Performance | Maximum speed(km/h) | 115 |
Maximum gradeability(%) | 33 | |
Minimum turning diameter(m) | 15 | |
Comprehensive fuel consumption(L/100km) | 34 ~ 39 |
1.competive price, cost-effective
2.with all kinds of truck model, which can fulfil your requirements
3.all kinds of cargo body structure can be designed and produced according to your request,make it have light curb weight , high rigidity , high loading capacity
4.using the high strength steel, make it has a long service life
5.The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
6.excellant apperance of cabin, safety, reliable
7.quick and efficient spare parts supply bring you more convenient
8. you can choose cargo body with Front lifting type or Middle lifting type which you prefered
9. The hydraulic sytem using HYVA brand or Domestic famouse brand
10.low fuel consumption
11. strong enough engine
12.fast delivery time, we can arange production according to your needs exactly and quickly
13. professional import and export dealing precedure, make customs clearance more high efficiency
FAQ
Q1: What can you buy from us?
A1: New and used SINOTRUCK and SHACMAN brands : dump trucks, tractor trucks, Cargo trucks, tank trucks, suction trucks, cement mixers and custom trailers, as well as truck accessories.
Q2: How to visit your factory?
A2: When you arrive in China, you can fly to Nanchang Airport. Nanchang Airport is located in Nanchang City, Jiangxi Province. Our driver will pick you up at Nanchang International Airport and drive you to our factory.
Q3: How to ensure product quality?
A3: 1. New car: First of all, we have passed the international quality system certification. Secondly, China Manufacturing Group has carried out on-site certification of our factory.
2.Used car: Before each vehicle leaves the factory, we will check the vehicle's: engine, gearbox, frame, rear axle is in perfect working level, and road test. If you are not assured, you can entrust a third-party testing agency to do a detailed inspection of our factory vehicles.
Q4 :What services can we provide?
A4: 1. On the premise that you do not need us to be responsible for international transportation, we can help customers transport to any port in China for vehicle handover.
2. If you need our company to take charge of transportation, we can book the cabin for you and transport to the port of delivery. Make it easier for you.
Acceptable delivery methods: FOB, CIF
Payment currency accepted: US Dollar, Euro, Chinese Yuan, Nigerian Naira, Kenyan Shilling.
Payment accepted: T/T payment
Sales team support spoken English.
Q5: Who are we?
A5: Our factory headquarters is located in Gao 'an City, Jiangxi Province, the factory covers an area of 2000 square meters, there are truck exhibition hall, repair shop, maintenance workshop, paint shop. Professional truck maintenance personnel reached 15 people. The company began to engage in truck export business in 2018, and the current sales market share: Africa (80.00%), Southeast Asia (10.00%), Central America (10.00%). Our sales team company is located in Dongguan City, Guangdong Province, professional sales team of 8 people.
